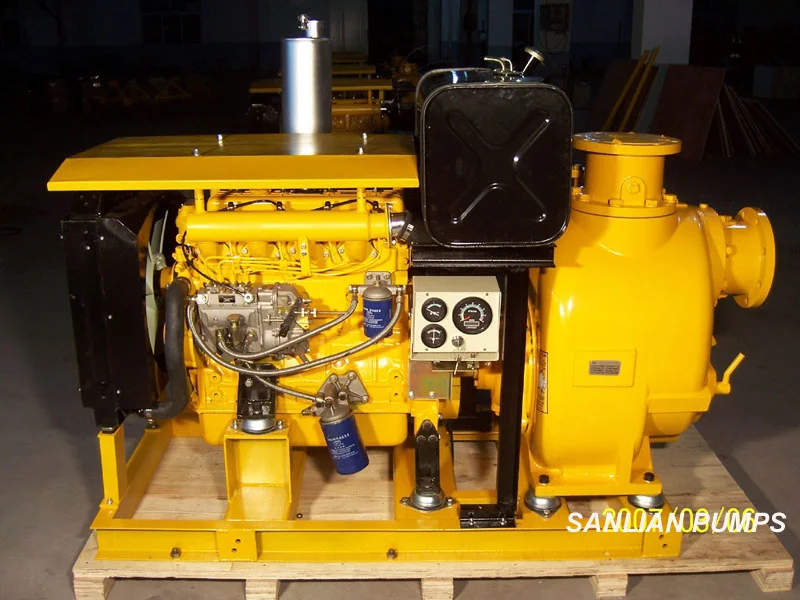

Heavy Duty Self-Priming Trash Water Pump Made in China

Product Description

Heavy Duty Self-Priming Trash Water Pump Made in China
ST& SU Series pumps are designed for economical & trouble-free operation in handling solids-laden liquids and slurries. Pumps feature a large volute design which allows them to re-prime automatically in a completely open system without the need of suction or discharge check valves. And this is workable with the pump only partially filled with liquid and completely dry suction line.

Pumps will be able to handle up to 75mm spherical solids, depending on pump models. In case that pump shaft or bearings need service or repair, the entire rotating assembly can be removed without disturbing pump casing or pipelines.
Rotating assembly is sealed with an O-Ring, allowing for external adjustments of clearance.

Material: Cast Iron, ADI, CD4MCU, 316 SS, Alloy 20, C276.

Data Sheet:

Type: ST-2

Inlet, outlet: 2"

Max. Throught solids: 44.45mm

Head: 5m ~ 36m

Flow: 10m³ /h ~40m³ /h

Speed: 1150rpm ~2900rpm

Repriming lifts: 7.3m ~7.6m

Type: ST-3

Inlet, outlet: 3"

Max. Throught solids: 63.5mm

Head: 4m ~ 35m

Flow: 10m³ /h ~100m³ /h

Speed: 650rpm~ 2150rpm

Repriming lifts: 1.5m~ 7.6m

Type: ST-4

Inlet, outlet: 4"

Max. Throught solids: 76.2mm

Head: 4m ~ 35m

Flow: 20m³ /h ~150m³ /h

Speed: 650rpm~ 1950rpm

Repriming lifts: 1.5m~ 7.6m

Type: ST-6

Inlet, outlet: 6"

Max. Throught solids: 76.2mm

Head: 4m ~ 30m

Flow: 20m³ /h ~300m³ /h

Speed: 650rpm~ 1550rpm

Repriming lifts: 2.4m~ 7.6m

Type: ST-8

Inlet, outlet: 8"

Max. Throught solids: 76.2mm

Head: 5m ~ 30m

Flow: 50m³ /h ~550m³ /h

Speed: 650rpm~ 1350rpm

Repriming lifts: 2.7m~ 7.0m

Type: ST-10

Inlet, outlet: 10"

Max. Throught solids: 76.2mm

Head: 5m ~ 35m

Flow: 100m³ /h~ 700m³ /h

Speed: 650rpm ~1450rpm

Repriming lifts: 2.1m~ 6.7m

Type: ST-12

Inlet, outlet: 12"

Max. Throught solids: 76.2mm

Head: 5m ~ 40m

Flow: 150m³ /h ~1100m³ /h

Speed: 650rpm ~1250rpm

Repriming lifts: 1.6m~ 4.9m

Type: SU-3

Inlet, outlet: 3"

Max. Throught solids: 20.63mm

Head: 10m ~ 60m

Flow: 10m³ /h ~80m³ /h

Speed: 850rpm~ 2150rpm

Repriming lifts: 2.3m ~7.6m

Type: SU-4

Inlet, outlet: 4"

Max. Throught solids: 28.57mm

Head: 10m ~ 60m

Flow: 20m³ /h ~140m³ /h

Speed: 850rpm~ 2150rpm

Repriming lifts: 2.4m~ 5.2m

Type: SU-6

Inlet, outlet: 6"

Max. Throught solids: 31.75mm

Head: 10m ~ 60m

Flow: 40m³ /h ~280m³ /h

Speed: 850rpm~ 1950rpm

Repriming lifts: 2.4m~ 4.5m
Heavy Duty Self-Priming Trash Water Pump Made in China
Heavy Duty Self-Priming Trash Water Pump Made in China


Contact us if you need more details on Heavy Duty Self-Priming Trash Water Pump Made in China. We are ready to answer your questions on packaging, logistics, certification or any other aspects about China Trash Pump、China Industry Pump. If these products fail to match your need, please contact us and we would like to provide relevant information.
