DC Submersible Solar Pump For Agriculture irrigation

Packaging:	package is carton or wooden case
Transportation:	Ocean,Land,Air,Express
Supply Ability:	2000 Set/Sets per Month
Port:	Shanghai,Ningbo

Basic Info

Model No.: 4TPC13-36-110-750

Product Description

Solar Pump Systems > DC Solar Pump > DC Submersible Solar Pump For Agriculture irrigation

Advantage of DC solar pump
1.DC Brushless Permanent-magnetic synchronous motor for solar power dc Submersible Water Pump to get high speed and high
efficiency.
2. Japanese NSK bearing; Alloy mechanical seal.
3. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
4. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and
automatically start working 30 minutes later.

5.Controller: MPPT function; frequency conversion function; Automatically working function; water proof and leak-proof.

Specification

DC Submersible Solar Pump Solar Water Pump

DC Submersible Solar Pump Solar Water Pump
4TPC13-36-110-750
Application:Irrigation and Agriculture, irrigation household
Horsepower:2hp
Pressure:high pressure
Structure:Multistage Pump
Outlet Size:1.25inch
Voltage:110V
Power:750W
Outlet:1.25''
Usage:water
Theroy:Centrifugal Pump
Motor:100% Copper Wire
Fuel:solar energy
Maximum Head:36m
Maximum Flow Rated:13000L/H

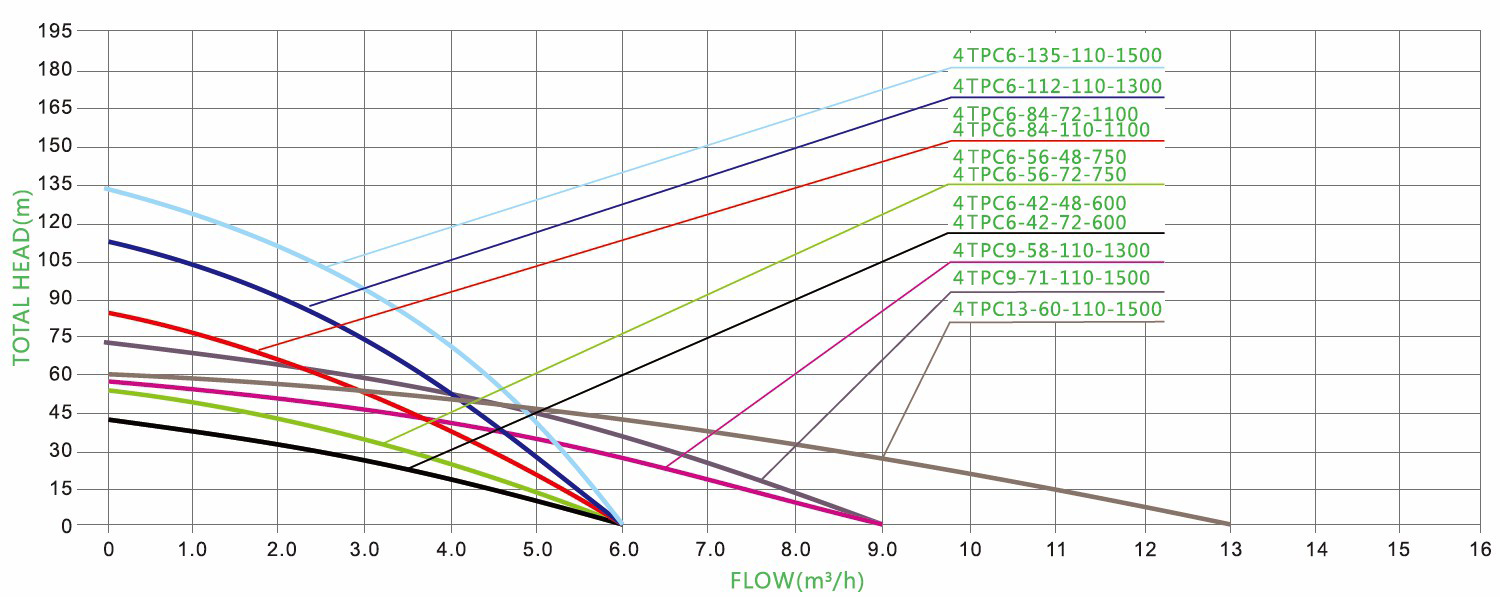

Model	Power(w)	Voltage (v)	Max Flow (m³/h)	Max Head (m)
4TPC6-42-48-600	600	48	6	42
4TPC6-42-72-600	600	72	6	42
4TPC6-56-48-750	750	48	6	56
4TPC6-56-72-750	750	72	6	56
4TPC6-84-72-1100	1100	72	6	84
4TPC6-84-110-1100	1100	110	6	84
4TPC6-112-110-1300	1300	110	6	112
4TPC6-135-110-1500	1500	110	6	135
4TPC9-58-110-1300	1300	110	9	58
4TPC9-71-110-1500	1500	110	9	71
4TPC13-36-110-750	750	110	13	36

Packing & Delivery

Application
1.Irrigation in horticulture & agriculture
2.Livestock watering
3.Gardens or fountains
4.Domestic water supply
5.Pond management
6.Small scale service industries

Wuxi Doton Power

DOTON POWER has specialized in the developing, manufacturing and sale of excellent generators, including portable diesel generator and professional diesel generators supplying, commissioning from 10 to 2500KVA through more than 10 years of experience. DOTON POWER shall solidify its leading role in generators through innovation of new products in the future.

Company Info

Company Name: Wuxi Doton Power
Representative: Qunfang Gong
Product/Service: Diesel Generators , Gasoline Generators , Lighting Towers , Solar Module , Solar Pump , Water Pumps
Capital (Million US $): 500,000RMB
Year Established: 2011
Total Annual Sales Volume (Million US $): US$2.5 Million - US$5 Million
Export Percentage: 61% - 70%
Total Annual Purchase Volume (Million US $): US$2.5 Million - US$5 Million
No. of Production Lines: 20
No. of R&D Staff: 11 -20 People
No. of QC Staff: 5 -10 People
OEM Services Provided: yes
Factory Size (Sq.meters): 5,000-10,000 square meters
Factory Location: No. 41, Huigu Venture Park, Xingzhi Road, Huishan District, Wuxi City, Jiangsu Province, China
Contact Person: Ms. Shelly
Tel: +86-0510-82825375
