Precise stainless steel peristaltic water pump

BT600F peristaltic Water Pump

BT600F is a large flow rate peristaltic water pump. It provides flow range from 0.006-2900 mL/min with variable pump heads and tubes. It could transfer various liquid, such as water, medical liquid and so on.

Specifications of BT600F peristaltic water pumpp

• Flow range :0.006-2900ml/min
• Speed range : 600mp
• Speed resolution : 0.1 rmp
• Flow accuracy : <0.2%
• Power supply : AC 220V±10%,50Hz/60Hz(standard),AC110V±10%,50Hz/60Hz(optional)
• Power consumption : <60W
• External control : Input level 5V,12V(standard),24(optional)
• Commumication interface : RS485communication interface, MODBUS protocol is available.
• Operating condition : Temperature 0 ~ 40°C; Relative humidity <80%
• IP garde : IP31
• Dimensions : 226mm*150mm*238mm (L*W*H)
• Weight :5.2KG

Features of BT600F peristaltic water pump

• BT600F peristaltic pump has color LCD display, touch screen and keypad for operating.

• BT600F filling peristaltic pump has reversible direction, start/stop control and adjustable speed.

• BT600F filling peristaltic pump has precise motor to control technology improves dispense accuracy compared to the traditional time dispense mode.

• BT600F motor peristaltic pump has anti-drip function ensures dispense accuracy.

• BT600F medical peristaltic pump has three dispense modes available. Time Dispense Mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles. Volume Dispense Mode: automatically dispense by setting the volume for each dose, lag time between doses and number of cycles. Copy Dispense Mode: automatically dispense by setting the total volume need to dispense, lag time between doses and number of cycles.

• BT600F filling control peristaltic pump can store five groups of working parameters for each dispense mode (power-off memory).

• Flow rate display and control; cumulative dispense volume display.

• Flow rate calibration.

• 0.2% high precision rotating speed control with 0.1 rpm speed resolution. Professional operating system. Configure system with setup wizard.

• Intelligent temperature control to minimize working noise.

• External logic level signal can control start/stop, direction and easy dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated.

• With RS485 MODBUS interface.

• Internal double-layer isolation structure, circuit board with conformal coating make the pump dust-proof and moisture proof.

• Anti-electromagnetic interference feature, wide input voltage range for complex power environment.

• Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents.

• Drive multi-channels and variable pump heads.

• Optional footswitch and remote infrared control.

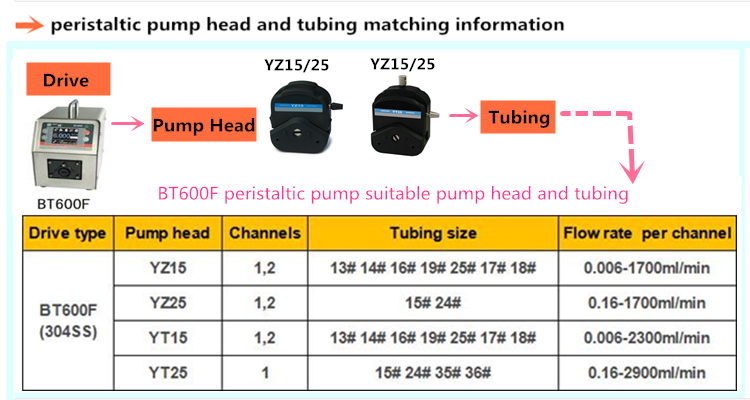

BT600F Suitable Pump Heads and Tubing, Flow Parameters

Other models Peristaltic Pump

Besides BT600F peristaltic pump, we also supply other types peristaltic pump, the flow range is as follows, you can check which one is best for you.

Type	Model	Flow rate	Channels up to
Variable speed pump	B80S	0.005-64ml/min	3
	BT50S	0.00011-190ml/min	2
	BT102S	0.00011-480ml/min	2
	BT100S	0.00011-720ml/min	4
	BT101S-1	0.00011-1700ml/min	24
	BT300S	0.006-1600ml/min	4
	BT600S	0.006-2900ml/min	2
	WT300S	3-3500mL/min	4
	WT600S	3-6000mL/min	4
	WT600S-65	3-6000mL/min	2
Intelligent flow pump	BT100L	0.00011-720mL/min	4
	BT300L	0.006-1600mL/min	4
	BT600L	0.006-2900mL/min	2
Dispensing pump	BT600F-1	0.00011-720mL/min	4
	BT600F	0.006-1600mL/min	4
	BT600F	0.006-2900mL/min	2
	BT600F	0.00011-1700mL/min	24
	WT300F	0.006-4000mL/min	4
	WT600F	0.06-6000mL/min	2
	WT600F-65	0.06-6000mL/min	2
Industrial pump	WG600S	0.4-13 L/min	2
	WG600F	0.01-13 L/min	2
Bath transfer pump	JP300S	Max 35L/min	2
Explosion-proof pump	FP300S-A3	Max 35L/min	1
	FG600S-A3	0.006-6L/min	2
	FG601S-A3	800-12000mL/min	2
	FG600S-Q	9-1700ml/min	2
	FG601S-Q	350-12000ml/min	1
