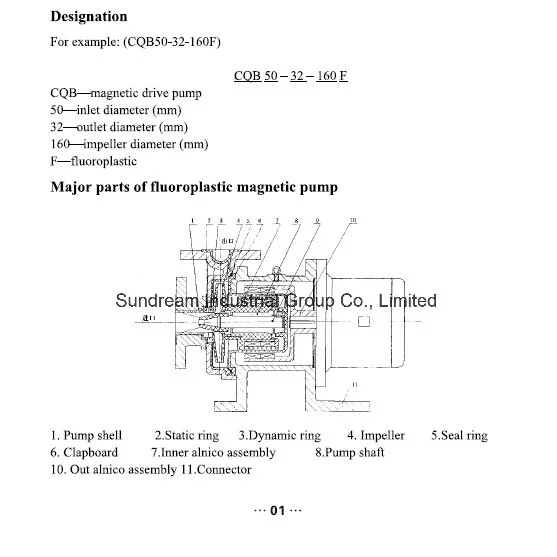

1. Description of the pump :
The CQB type heavy (high temperature) magnetic drive pump (magnetic pump for short), usually by the motor, magnetic coupling and corrosion resistant centrifugal pumps composed. Its main feature is the use of a magnetic coupling to transfer power completely leak through the ask gap and spacer sleeves when outside the magnet rotary motor driven by magnetic coupling, the magnetic field lines, the role of the inner magnet synchronous rotation, the pump rotor motor without mechanical contact to transmit torque. In the power input end of the shaft, since the liquid is enclosed in the stationary isolation kit, no dynamic seal is thus completely without leakage. The CQB Series magnetic pump, magnetic pump joint design team developed a new type of leak Naifushibeng, quite the level of the late eighties of its technical and economic indicators with similar foreign products. The CQB Series Magnetic Pump Types and basic parameters in line with the JB / T 7742-1995 "small magnetic drive Centrifugal Pump types and basic parameters" standards and small magnetic drive centrifugal pump three standard supplementary regulations.
CQB Series heavy-duty magnetic pump (high temperature) applicable to the petroleum, chemical, pharmaceutical, metallurgy, electroplating, environmental protection, food, film and printing photos, water treatment, defense and other industries, the transportation of flammable, explosive, volatile, toxic, rare and precious liquid and ideal equipment for various corrosive liquids. For conveying suction pressure greater than 0.2MPa, the maximum working pressure of 1.6MPa, the temperature does not exceed 100 ° C, density not greater than 1600kg/m3, viscosity of less than 30 × 10-6m2 / S does not contain hard particles and fibers liquid.

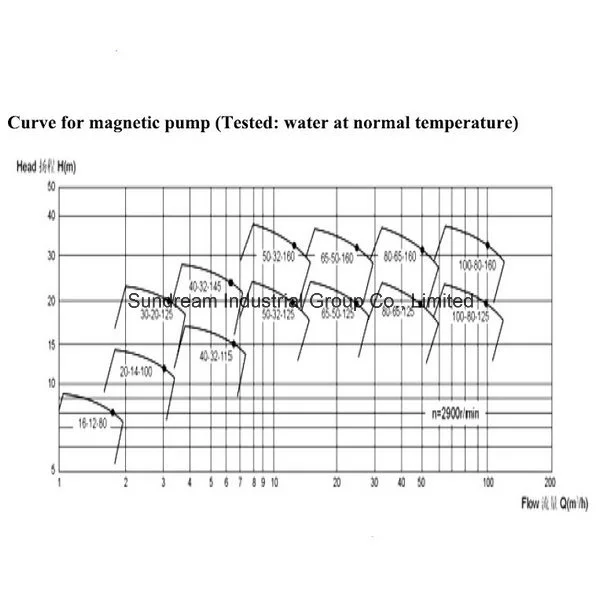

2 . Technical parameters:
Flow range: 3.2m3 / h ~ 100m3 / h
Head range: 8m ~ 50m
Motor power: 1.1kw ~ 55kw
Note: If you have special requirements, please contact our technical staff! 0086-15805885358
|Model No.||Caliber||Capacity (m 3 /h)||Head (m)||Power (kW)|
