High Temperature Stainless Steel Magnetic Pump

Product Description

Centrifugal magnetic pump specification:

CQ type Magnetic pump(Referred to as Magnetic Pump) Is applied to the working principle
Performance summary:
CQ type Magnetic pump (Referred to as Magnetic Pump) Is applied to the working principle of permanent magnet coupling Centrifugal Pump The new product, reasonable design, advanced technology, with fully sealed, no leaks, corrosion characteristics, their performance to the advanced level of similar foreign products. Magnetic pump to replace the static seal dynamic sealing, over-current parts of the pump is completely sealed state, solve the other pump mechanical seal can not avoid the run, run, drop the disadvantages. Magnetic pump is corrosion resistant, high strength engineering plastics, alumina ceramic, stainless steel and other materials for manufacturing, so it has good corrosion resistance, and can be transported from contaminated media.
Establishment method of pump model:
Code of called magnetic pump: CQ, CQF.

Main usage:
1. Magnetic pump has advantage of compact structure, good- looking appearance, small volume, low noise, work reliable and easy to manage. It can be widely use for taking out acid, alkali liquid, oil type, rare valued liquid, volatile liquid and circular water equipment, filter accessories of chemical and industry, pharmacy, petroleum, galvanization, food-staff, film and television development, scientific research institution, National defense industry. Especially it is very suit for the take-out of leakiness, combustible, explosive liquid.
2. Corrosive liquid without solid particles, acids, alkalis, alcohol, bleach, photography solution, nitric acid, hydrochloric acid, hydrofluoric acid, acetic acid, sodium hydroxide, acetone, 4 ethylene oxide, water, salt and so on.
3. Enter the medium temperature -15~ +100, made of stainless steel, the density is not greater than 1600kg/m3, suction pressure is less than 0.2Mpa, the maximum working pressure of 1.3Mpa, transmission fluid without particles and fibers.

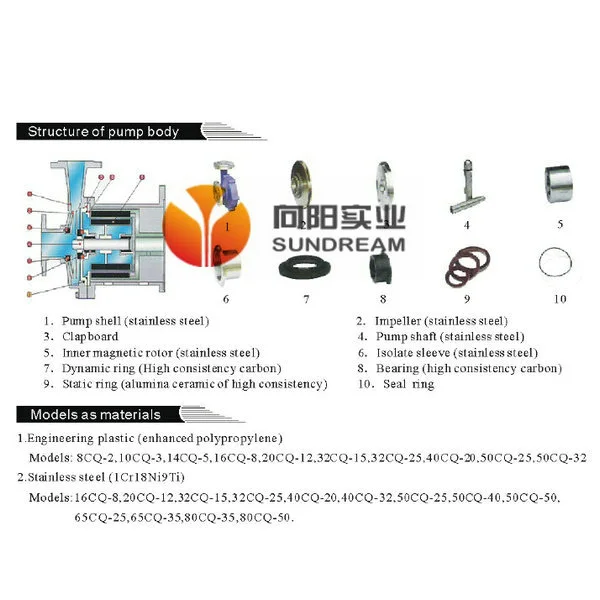

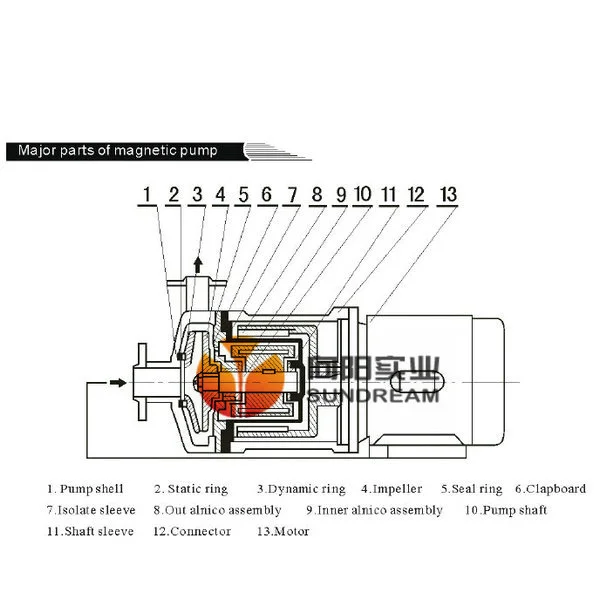

Major parts material form:

CQ Series Magnetic Driven Pumps Performance Parameter:
ModelCaliber   (mm)Flow
(m 3 /h)
Head (m)Power
(kW)
Voltage
(V)
Material
InletOutlet
14CQ-514101.250.18220/380304
316
316L
S.S
16CQ-816121.880.18220/380
20CQ-1220123120.37220/380
25CQ-1525205.4151.1380
32CQ-1532256.5151.1380
32CQ-2532254.8251.1380
40CQ-2040321202.2380
40CQ-32403211.5324380
50CQ-25504014.4254380
50CQ-32504013.2324380
50CQ-5050327.8505.5380
65CQ-25655016.8255.5380
65CQ-32655025325.5/7.5380
80CQ-328065503211380
80CQ-508065505015380
100CQ-3510080603515380
100CQ-5010080605018.5380

High Temperature Stainless Steel Magnetic PumpHigh Temperature Stainless Steel Magnetic Pump
